ELEI

Storage & Access

Pull-Out Unit

Bring stored goods within reach.

Patent Pending

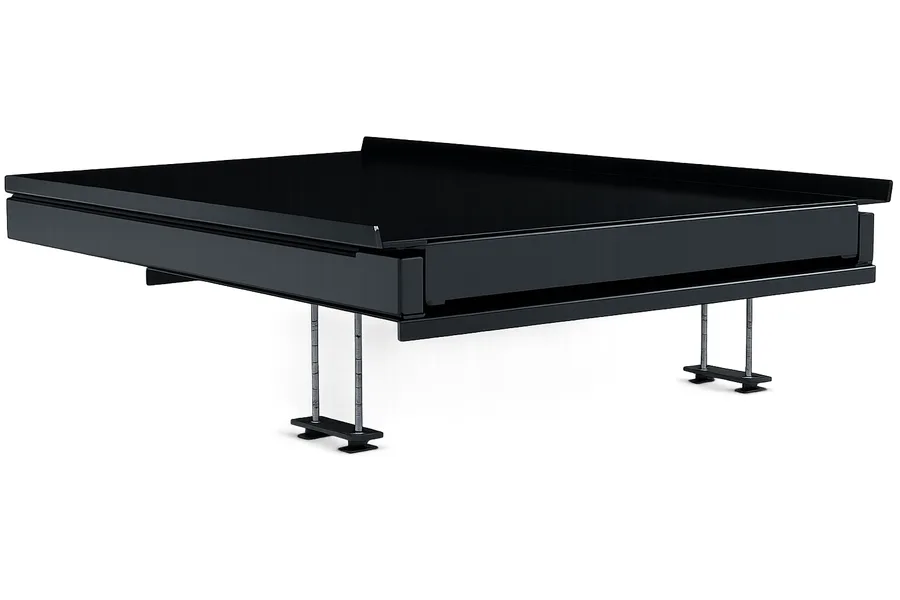

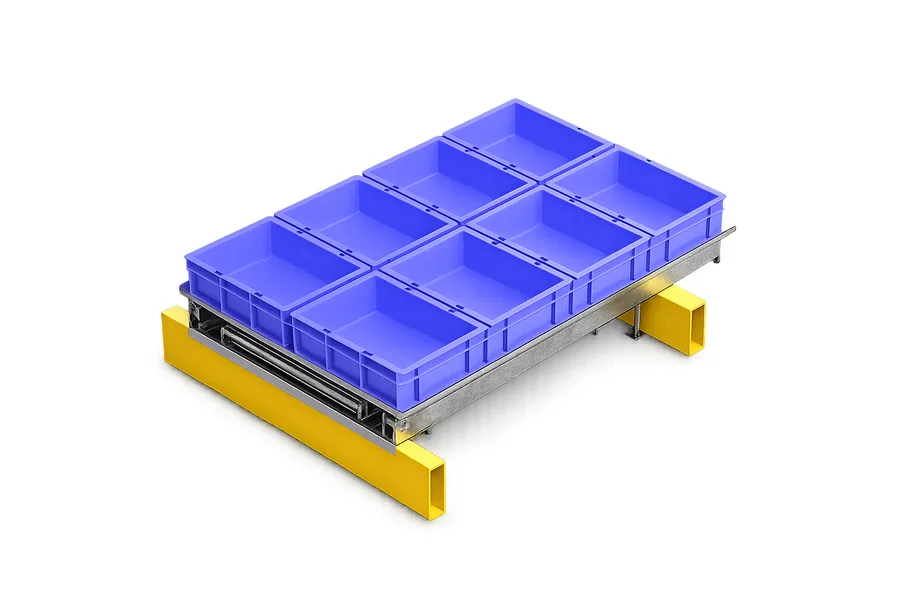

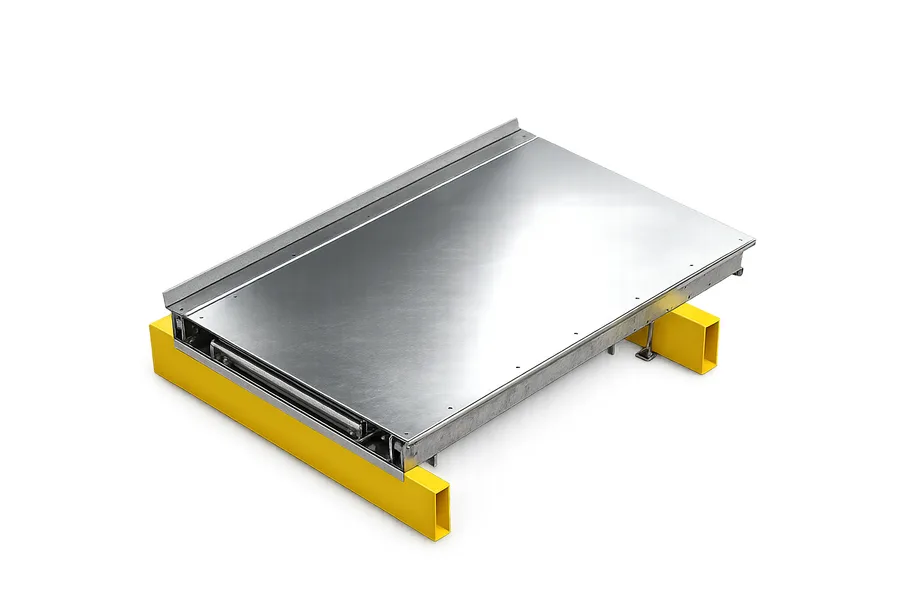

The Pull-Out Unit is a heavy-duty pallet pull-out system that allows palletized or heavy loads to be pulled out of a rack in a controlled manner for safe, ergonomic access. Available with 70% or 100% extension and load capacity options from 350 to 1,000 kg, it facilitates storage and loading operations.

Request Technical Details View Model Options
Pull-Out Unit

  • 70% or 100% extension

    Choose the extension that fits your workflow.

  • Beam mounting

    Standard beam mounting with optional floor mounting.

  • Position lock

    Grip-operated position lock holds the unit in position.

Model Options

Capacity 70% extension 100% extension
350 kg ELPO 70350 ELPO 100350
700 kg ELPO 70700 ELPO 100700
1000 kg ELPO 70100 ELPO 100100

Technical Specifications

  • Load capacity options: 350 / 700 / 1,000 kg
  • 70% / 100% extension options
  • Heavy-duty sliding mechanism
  • Ergonomic access to palletized loads
  • Available in custom colors

ELPO

ELPO 70350 Specifications

Load capacity 350 kg
Extension 70%
Pull-out travel 840 mm
Storage surface 820 × 1240 mm
Overall width 826 mm

Specifications shown for ELPO 70350.

Designed for everyday access

Pull-Out Unit

Brings stored goods forward for easier loading, unloading and picking.

Easier picking and handling

Direct access to stored goods speeds up your workflow.

Grip-operated position lock

Holds the unit in position.

Optional floor mounting

Can be configured with floor-mounting supports.
